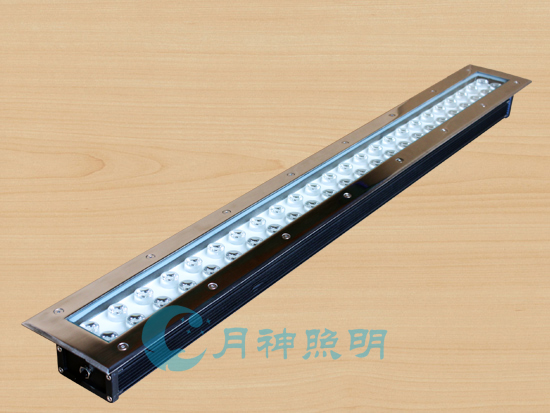

Name: Buried-type LED wall washer (also known as line lights, linear spotlights, etc.)

Light body size: 1000mm * 120mm * 70mm (any non-standard length can be customized)

Light body material: thick aluminum, 304 stainless steel, 10mm toughened glass, stainless steel fasteners

PCB material: high thermal conductivity aluminum substrate

Light Source: Imported High Brightness LED (Light Emitting Diode)

LED number: 48 (high-power 1W /, 110Lm / W)

Light bead chip: the United States Purui chip

Life: 50,000 hours (maintenance-free during use)

Drive mode: Built-in isolated constant current drive module (active PFC circuit design)

Power factor: ≥0.96

Use voltage: DC24V (can also be customized AC220V)

Output current: constant current 350mA (full power current)

Power: 48W (can be customized for various power such as 24W / 36W / 48W / 54W / 72W, etc.)

Energy efficiency: 75% or more

Color rendering index: ≥ 80Ra

Light flux: 130-150Lm / W

Light color: white (can be customized for other colors, such as red, blue, green, yellow, white, warm white, color, etc.)

Color temperature: 6000K (1800K-8500K optional)

Projection distance: 60 meters (30 ° angle)

Wall wash height: 6-10 meters

Beam angle: 15 ° -60 ° angle

Looking up angle: not adjustable (can be customized polarized type)

Lens Material: PMMA (Acrylic)

Installation: Buried installation

Protection class: IP67 (one-component special silicone sealing lighting, waterproof rubber pads, internal filling plastic, three waterproof measures, waterproof and dustproof, suitable for outdoor)

Suitable temperature: -35 ℃ ~ 60 ℃

Warranty: Warranty three years, life-long maintenance

Features: LED wall washer has both linear light source characteristics and surface light source features, rich colors, is a new high-end outdoor lighting products. High efficiency and energy saving LED light source, high brightness, no UV, no strobe, uniform light spot, a small angle of irradiation of the wall or other surface was irradiated, does not produce light pollution. Solid light source, shock proof, good safety. Aluminum shell, anodized or electrostatic spray treatment, acid and alkali, high UV resistance. Isolated drive power, active PFC circuit design, constant current output, super energy saving and extended service life. Comes with a mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance-free during use.

Applicable occasions: Suitable for outdoor environment, waterproof and dustproof. Applied to the building lighting, overpass, the city square, large sculpture lighting, parks, stage lighting, billboard lighting, tree lighting, landscape lighting, green belt lighting.
