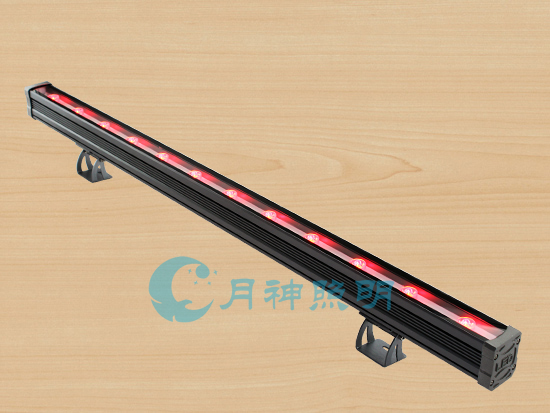

Name: 12W red new LED wall washer

Style: thick aluminum shell, integrated strip radiator structure, special surface spray color.

Light body size: 1000mm * 40mm * 50mm (can be customized to any non-standard length)

Light body material: thick aluminum extruded profiles, tempered glass, stainless steel fasteners

Surface treatment: electrostatic spray (color optional)

PCB material: high thermal conductivity aluminum substrate

Light Source: Imported High Brightness LED (Light Emitting Diode)

LED number: 12 (high-power 1W /, 130Lm / W)

Light bead chip: the United States Purui chips or Taiwan wafer chips

Life: 50,000 hours (maintenance-free during use)

Drive Power: Built-in isolated constant current drive (metal case, fully potted waterproof)

Power factor: ≥0.96

Operating voltage: AC85-260V / DC24V

Output current: constant current 300mA

Power: 12W (can be customized for various power, such as 12W / 18W / 24W / 36W, etc.)

Energy efficiency: 75% or more

Color rendering index: ≥ 80Ra

Luminous flux value: 70-150Lm / W

Luminous color: red (can be customized a variety of monochrome such as red, blue, green, yellow, white, warm white and colorful, etc.)

Wall wash height: 2-5 m (30 ° angle)

Projection distance: 15 meters

Beam angle: 15 °, 25 °, 30 °, 45 °, 15 * 45 °, 25 * 60 ° optional

Looking up angle: adjustable

Lens Material: PMMA (Acrylic)

Mounting bracket: with chute, removable, adjustable upview

Installation: bracket installation (aluminum bracket, expansion screws can be fixed to the mounting surface)

Protection class: IP65 (waterproof structure with plastic irrigation seal, special waterproof pad, plus one-component special silicone sealing lighting, double waterproof)

Suitable temperature: -35 ℃ ~ 60 ℃

Certification information: CE certification, ROHS certification and quality inspection center of the State Quality Inspection Report

Quality level: a level

Warranty: Warranty three years, life-long maintenance

Features: LED wall washer has both linear light source characteristics and surface light source features, rich colors, is a new high-end outdoor lighting products. High efficiency and energy saving LED light source, high brightness, no UV, no strobe, uniform light spot, a small angle of irradiation of the wall or other surface was irradiated, does not produce light pollution. Solid light source, shock proof, good safety. Aluminum shell, anodized or electrostatic spray treatment, acid and alkali, high UV resistance. Isolated drive power, active PFC circuit design, constant current output, super energy saving and extended service life. Comes with a mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance-free during use.

Applicable occasions: Suitable for outdoor environment, waterproof and dustproof. Applied to the building lighting, overpass, the city square, large sculpture lighting, parks, stage lighting, billboard lighting, tree lighting, landscape lighting, green belt lighting.
