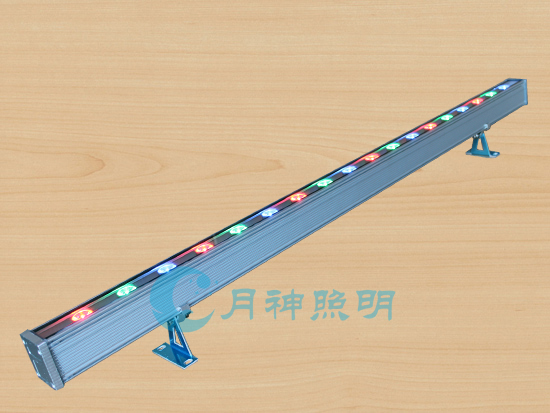

Description: Name: LED wall washing lamp (also known as line lights, linear projection lamp, etc.)

Style: compact light body, with heat radiation stripe shell.

Lamp body size: 1000mm*40mm*50mm (can be customized for any non-standard length)

Light body material: aluminum, tempered glass, stainless steel fasteners with heat sink

Surface treatment: anodized (alumina color) or electrostatic spray (color optional)

PCB material: high thermal conductivity aluminum substrate

Light source: imported high brightness LED (light emitting diode)

LED number: 18

LED chip: Taiwan epstar chip

Chip size: 38*38mil square chip

Service life: more than 50 thousand hours (maintenance free)

Drive mode: built in isolation type constant current drive module (active PFC circuit design)

Power factor: 0.96

Using voltage: AC24V or AC220V

Output current: constant current 300mA

Power: 18W (can be customized to a variety of power)

Energy efficiency: more than 75%

Color index: 70

Flux value: 1600Lm

Light emitting color: color RGB (can be customized with a variety of other colors, such as red, blue, green, yellow, white, warm white, color, etc.)

Color temperature: RGB

Control mode: internal control (gradual change, fast change or gradual change) or outside control (running water and other procedures) optional

Wall height: 3-5 m (30 degrees)

Projection distance: 20 meters

Light emitting angle: 15 degrees -60 degrees (conventional 45 degrees)

Looking up angle: adjustable

Lens material: imported optical PMMA (optical)

Mounting bracket: belt chute, movable and adjustable elevation angle

Installation method: bracket installation (aluminum alloy stent, expansion screws fixed to the mounting surface can be)

Protection grade: IP65 (waterproof structure, special waterproof pad, plus one special lighting silicone seal, double waterproof)

Applicable temperature: ~60 C -35 C

Certification information: National lighting quality inspection center of the inspection report (the most authoritative lighting industry quality inspection report)

Warranty: three years warranty, life-long maintenance

Features: LED wash wall lamp has a linear light characteristics and surface light source characteristics, rich colors, is a new high-end outdoor lighting lighting products. LED light source, high efficiency and energy saving, high brightness, no UV, no flicker, no uniform light spot, small angle light wall or other surface to be illuminated, no light pollution. Solid light source, shock proof and explosion proof, good safety. Aluminum shell, anodic oxidation or electrostatic spray treatment, acid resistance and alkali resistance, high resistance to ultraviolet radiation. Isolated driving power supply, active PFC circuit design, constant current output, super energy saving and extended service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.

Application: suitable for outdoor environment, waterproof and dust. The application in building lighting, overpass, city square, sculpture park, lighting, stage lighting, advertising lighting, landscape lighting, road lighting, trees, green belt and lighting.
