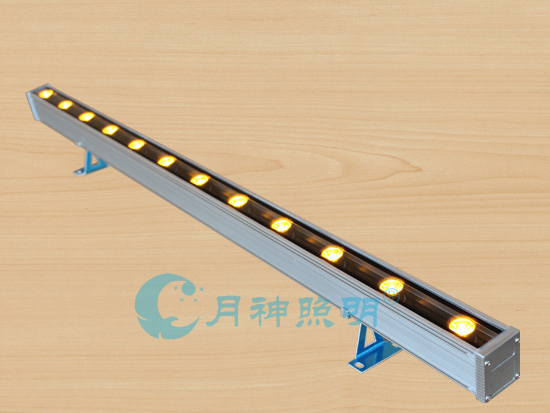

Name: LED wash wall lamp (also known as line lights, line type, etc.)

Lamp body size: 1000mm*40mm*50mm (can be customized for any non-standard length)

Light body material: thickening of aluminum, tempered glass, stainless steel fasteners; light body surface with heat radiation stripes, good cooling effect.

Surface treatment: anodized (silver) or electrostatic spray (optional color), anti ultraviolet radiation, suitable for harsh outdoor environment.

PCB material: high thermal conductivity aluminum substrate

Light source: imported high brightness LED (light emitting diode)

LED number: 12 (high power 1W/)

Beads: genuine Taiwan wafer chip chip

Service life: more than 50 thousand hours (maintenance free)

Driving mode: built in high power factor isolation type constant current drive module

Power factor: 0.95

Use voltage: wide voltage AC90V-AC260V (can be customized low voltage 24V)

Chip rated current: 350mA

Design output current: constant current 300mA

Power: 12W (can be customized to a variety of power)

Energy efficiency: more than 75%

Color index: 80Ra

The flux value is not less than 900Lm

Light emitting color: yellow light (can be customized to other colors, such as red, blue, green, yellow, white, warm white, color, etc.)

Color temperature: 1800K

Projection distance: 15 meters (45 degrees)

Wall height: 2-4 M

Light emitting angle: 15 degrees -60 degrees (integrated lens)

Looking up angle: adjustable

Lens material: imported optical PMMA (optical)

Mounting bracket: belt chute, movable and adjustable elevation angle

Installation way: the bracket is installed (the expansion screw is fixed on the mounting surface.

Protection level: IP65 (waterproof and dust, suitable for outdoor environment)

Applicable temperature: ~60 C -30 C

Warranty: three years warranty, life-long maintenance

Features: LED wash wall lamp has a linear light characteristics and surface light source characteristics, rich colors, is a new high-end outdoor lighting lighting products. LED light source, high efficiency and energy saving, high brightness, no UV, no flicker, no uniform light spot, small angle light wall or other surface to be illuminated, no light pollution. Solid light source, shock proof and explosion proof, good safety. Aluminum shell, anodic oxidation or electrostatic spray treatment, acid resistance and alkali resistance, high resistance to ultraviolet radiation. Isolated driving power supply, active PFC circuit design, constant current output, super energy saving and extended service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.

Application: suitable for outdoor environment, waterproof and dust. The application in building lighting, overpass, city square, sculpture park, lighting, stage lighting, advertising lighting, landscape lighting, road lighting, trees, green belt and lighting.
